48V to 64V 1500W 45A Sensor/Sensorless Brushless ebike Controller with reverse for e-bike/Scooter/Motorcycle Controller 1000w

500pcs Camera Lens Tempered Glass For Samsung Galaxy A90 A80 A70 A60 A50 A40 M30 M20 Seamless Clear Full Cover Protective Film 500pcs Camera Lens Tempered Glass For Samsung Galaxy A90 A80 A70 A60 A50 A40 M30 M20 Seamless Clear Full Cover Protective Film 500pcs Camera Lens Tempered Glass For Samsung Galaxy A90 A80 A70 A60 A50 A40 M30 M20 Seamless Clear Full Cover Protective Film 300PCS 9D Full Glue Tempered glass for Samsung Galaxy M50 M40 M30 M20 M10 A7 A9 A8 Plus A90 A80 A70 A60 A50 A40 A30 A20 A10 50Pcs/lot LCD Front Outer Glass With OCA Glue On Sale For Samsung Galaxy S6 S7 G920 G930 LCD Outer Glass Replacement Repair Part Sound Speaker Unit For Shure se530 Or SE535 DIY Moving Iron Earphone LN003246 LN006130 Pure Silver Foil 8 core 2.5mm 3.5mm 4.4mm Balanced MMCX Earphone Cable For Shure SE535 SE846 Se215 Custom 5 12 BA 2.5mm Balanced 6N PCOCC + Pure Silver Alloy Earphone Cable For JH Audio Sirens Roxanne JH24 LN004905 100sets ERA kits. 9pcs/lot Earhook FOR bluetooth ERA Earbuds Earhook Earloop . for Jaw-bone 5th Gen Bluetooth Headset Era. Super capacitor module Farah capacitor dedicated to start a new capacitor capacitor JABEN Original W26/W26B IEM Up-grade earphone cable for Gray Oriolus 2Pin/0.78 2.5MM 3.5mm stereo plug 1PC NWT300AF-BNC 20Hz-300MHz Audio Frequency Sweeper Sweeping Signal Generator Network Analyzer GPSDO GPS Clock 10M SINE WAVE with LCD Display Frequency Message GPS Disciplined Oscillator + Antenna +power DUNU SH-OCS2401 Balanced MMCX detachable earphone cable with Furutech OYAIDE TRRS plug 2.5/3.5/4.4mm for DK-3001/Shure/UE/SONY 100% new original SEMS18-LF SEMS18 BGA Pure OCC Silver+Golden Plated Headphone Cable For Hifiman Sundara Ananda HE1000se HE6se he400 LN005976 For Airpods Protection Kits 4 in 1 Sets Silicone Case + Anti-lost Strape +Rubber Silicone Ear Cap+ Aluminum Hook 200pcs 20 Colors For Apple Airpods Silicone Case Soft TPU Ultra Thin Protector Cover Sleeve Pouch for Air pods Earphone Case 100%New in original NI GPIB-USB-HS IEEE488 interface GPIB USB HS GPIB cabie 1pcs 100% New and original In stock 1 year warranty 6AV2123-2DB03-0AX0 SIMATIC Touch Panel 6AV2 123-2DB03-0AX0, KTP400 1 year warranty New original In box FX3U-48MR/ES-A FX3U-48MT/ES-A FX3U-64MR/ES-A FX3U-64MT/ES-A A61L-0001-0093 D9MM-11A 9 inch CHINA NEW and Replacement Original full new DVP28SV11R2 PLC 16DI 12DO Relay output 24VDC in box 500pcs Colorful TPU spiral USB Charger Cable Protector for charging cables Cord organizer,Telephone line hair circle Length 50cm 500pcs Colorful TPU spiral USB Charger Cable Protector for charging cables Cord organizer,Telephone line hair circle Length 50cm Electrode Fixed Cap Electroencephalogram Cap 20 Guide Cap 200pcs Zipper Bag Earphone Cable Mini Box SD Card Portable Coin Purse Headphone Bag Carrying Pouch Pocket Case Cover Storage

Type Controller

Brand Name MEIANDIAN

Style Dual mode brushless controller

Voltage 48V-64V

Rated power 1000W-1500W

Reverse function Yes

Type electric bike controller Motorcycle

Use for ebike/Scooter/Motorcycle

Use ebike/electric bike/electric tricycle

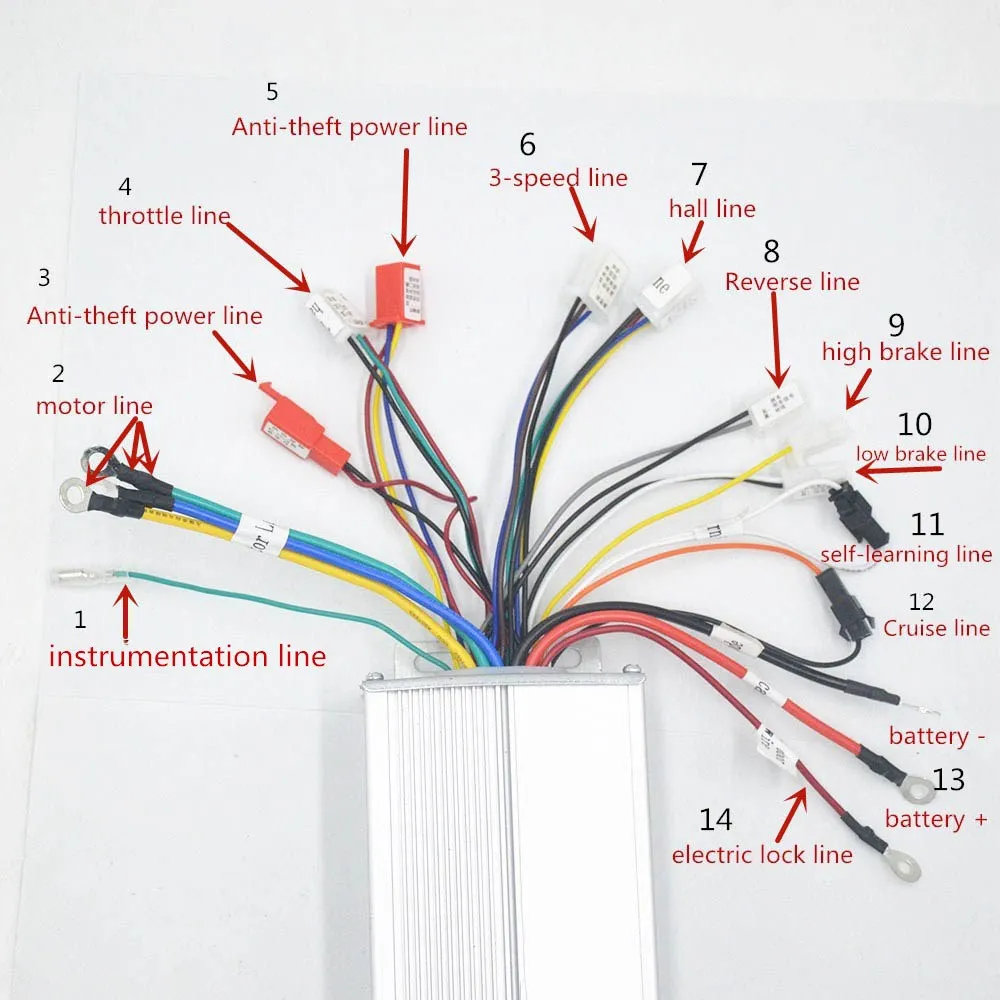

48 to 64V 1500W 45Amax Dual mode Sensor/Sensorless Brushless DC Motor Controller Voltage: 48-64V Low Voltage Cutoff: 41.5V +-0.5V Rated Power: 1000-1500W Mosfets: 15pcs Genuine irfb4410 mosfets, this controller can work with 48-64V batteries. Limit current: 45A Dimension of the controller box: 180*88*45mm (this size not included the assemble base) This controller is dual model which can work with both sensored and sensorless brushless DC motor, the limit current is 45A, whichis suitable for 1000W-1500W brushless DC motor. 48V-64V 1500W controller function 1.instrumentation line 2.motor line 3.Anti-theft power line 4.throttle line 5.Anti-theft alarm line 6.3-speed line(standard: 60%-80%-100%) 7.hall line 8.reverse line 9.high brake line 10.low brake line 11.self-learning line 12.Cruise line 13.battery line(red: battery+, black: battery-) 14.electric lock line (1.Contact the motor line 2.Contact the battery line(red:+ , black:-) 3.Contact the throttle line 4.Contact controller electric lock line to throttle electric lock line（if throttle without electric lock line, contact to battery + ） 5.Contact the hall line 6.Docking the two self-learning lines, twist throttle, the wheel will forward or reverse. (1.if wheel forward ,Separate the self-learning line. 2.if wheel reverse, Separate the self-learning line. then Docking the self-learning line again. if wheel forward ,Separate the self-learning line.) 7.other functions can be connected as needed. Dear customers, please check the wiring photo before placing the order, if you do not know how to connect the wires or this controller not fit for your ebike, please do not place the order, thanks!
