ETECH electric scooter conversion kits, 5 inch hub motors kits with controller and display

ROCHOBBY P51 Strega Racing High Speed RC Sport Plane RED (PNP) MyFlyDream MFD Nimbus 1800 Long Range RC FPV Plane Kit and PNP EPO Big 1800mm Airplane Remote Control Toy My Fly Dream GEPRC GEP Crocodil GEP LC7 PRO 315mm 7 Inch RC FPV Racing Drone Betaflight F4 50A Runcam Micro Swift RC Drones FPV Quadcopter 2.4G brushless motor rc planes fix wing remote control airplanes Saab J35 Draken Fighter foam 64" rc airplane arf speed:100KM/H 2.4G brushless motor rtf rc airplane fixed wing remote control hawk king airplanes trainers arf foam rc jet seaplane New Arkbird FPV Humming bird EPP RC Aircraft Wingspan 860mm Airplane PNP W/ Customized 2.0 Lite Autopilot Rc Fix-wing drone Volantex Ranger 2000 V757-8 2000mm Wingspan EPO FPV Aircraft RC Airplane PNP VS WLtoys F949 Wing Plane Z51 Outdoor toys Drone FMS RC Airplane 80mm Ducted Fan EDF Jet Futura V2 with Reflex Gyro Controller System High Speed Model Plane Aircraft PNP EPO Flight Line RC Plane wingspan 1600mm Spitfire 1.6 m World War II aircraft RC model airplane model PNP or PNP without ESC GEPRC CinePro 4K HD Caddx Tarsier 1200TVL Camera F405 30A 2-5S G_H_30 ESC 5.8G 500mW VTX PNP/BNF FPV Racing Drone Multicopter Flight New MXS-R 20CC Gas Gasoline Airplane Model RC Aircraft Remote Control 6 Channels 3D Fixed Wing ARF Plane Hubsan H301S HAWK 5.8G FPV 4CH RC Model Airplane With GPS Modulewith 1080P HD Camera LCD Professional Brushless Airplane Toy RTF 2019 Hot Sale Drone Profissional Lang Yu Three Generations X8021 60 Cc 3 D Fixed-wing Uav Optimal Strong Dynamic Force Balance E-DO Model 1500mm Wingspan Cessna EPO Twin Motor FPV RC Airplane Glider PNP Freewing NEW Electric RC 80 jet plane 80mm EDF camo RUSSIA L-39C RC plane 6s PNP or kit +s Retractable Landing gear jet plane Extra 330 57 "V2 Balsa Wood Fixed Wing RC Airplane Model Electric 1148mm JJR/C X6 5G WiFi FPV GPS RC Dron Toys 1080P Wide Angle HD Camera Selfie Brushless Follow Me RC Quadcopter Model Kids Toys Gifts Technic Series PNP Version RC plane B2 B-2 Stealth and Strategic Bomber Wingspan 1600mm rc b2 Boeing C17 PNP airplane RTF Globemaster III rc airplane ducted fan rc hobby Cargo transport airplane remote control f16 PNP version 8 Channel 70mm EDF jet RC plane gray rc f-16 P51 Mustang1450mm with retractable landin gear and light system PNP Super large remote control boat high speed water 2.4g charge remote control boat boy toy model ship Genesis 1122 Catamaran Racing Boat / Electric Brushless RC Boat Fiberglass with 3674 brushless motor KV2075, 120A ESC with BEC Princess Electric Brushless RC Boat Fiberglass with 3650 KV1500 motor with Water Cooling 120A / 180A ESC (W/O Radio System) 1111 Rocket Racing Boat / Fiberglass Brushless Electric RC Boat w/ 2958 KV2881 Brushless Motor / 70A ESC Fiberglass F3 Electric Brushless RC Racing Boat 1127 with 3000 KV motor + 70A ESC 406 Police Marine/ V-shaped Fiberglass Electric Brushless RC Boat with 3650 Motor + 70A ESC 75cm long big remote control boats classic rc sailing boat hull full set model power boat gift boat Shopping toys free shipping Hot RC Toy 80cm big remote control sailing boat full set model power boat gift boat Shopping free shipping Princess Fiberglass Electric Brushless RC Boat with 3650 KV1500 motor with Water Cooling 120A ESC (W/O Radio System) Smash Shark P1 Electric Brushless Racing Boat 1125 with 3660 KV2070 Motor, 120A ESC Lucky Oct 34"/870mm Electric Brushless Racing Boat 1126 with 3660 Motor, 120A ESC Super large remote control boat model speedboat waterproof electric charge remote control boat toy gift G26A2 KIT 49" Well Painted Fiber Glass RC Boat Hull Only for Advanced Player TH02678 G26IP1 50"FiberGlass Well Painted Boat HULL only for Advanced Player RED TH02722 G30D KIT FiberGlass Well painted Gasoline Racing Boat HULL only Blue for Advanced Player TH02716 2018 new 63cm large professional brushless electric Racing RC boat 903 2.4G 2200MAH 55km/h top speed RC speedboat marine model TFL Hobby Party Brushless RC Boat / Racing Boat with Motor 3660 2070KV/ 120A ESC/ 900mm

Motor Type Brushless Non-gear Hub Motor

Design Brushless

Brand Name ETECH

Wattage 201 - 300w

Voltage 12V 24V 36V

Brake type ebs

Tire inflate-free tire

Diameter with tire 130mm

No-load speed max.1600rpm

No-load current max. 1.3A

Efficiency more than 84%

Key words hub motor, hub wheel, wheel motor, scooter motor, skate board motor

Shaft type single shaft and dual shaft

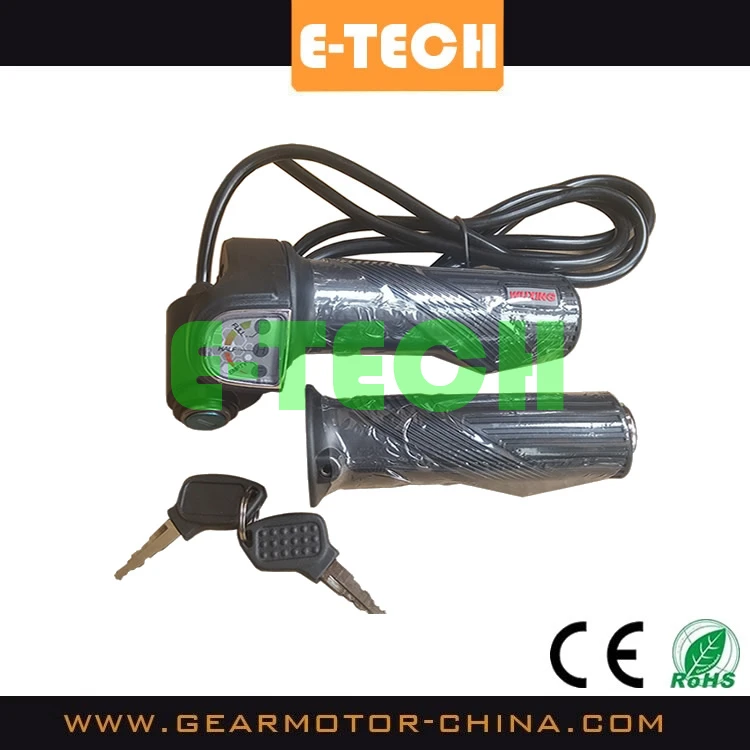

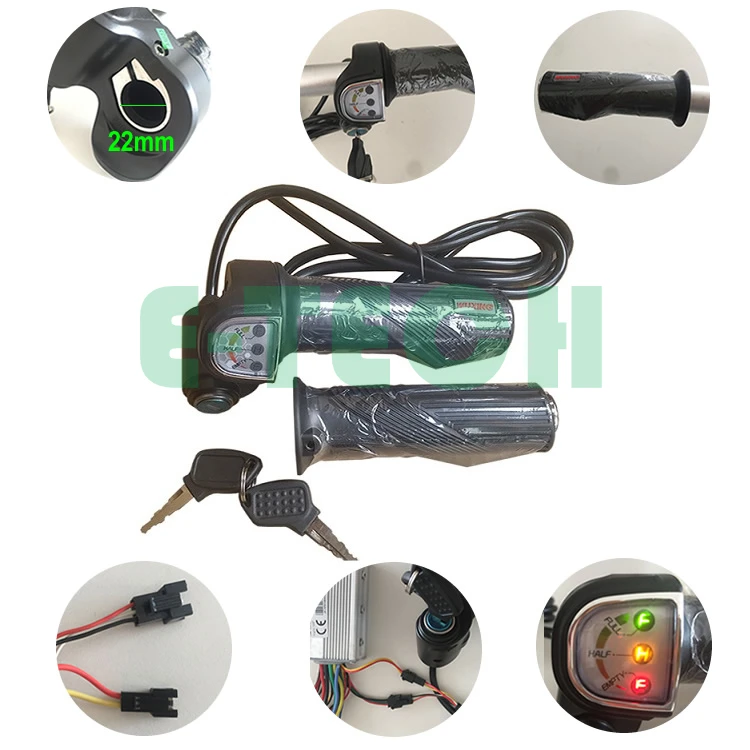

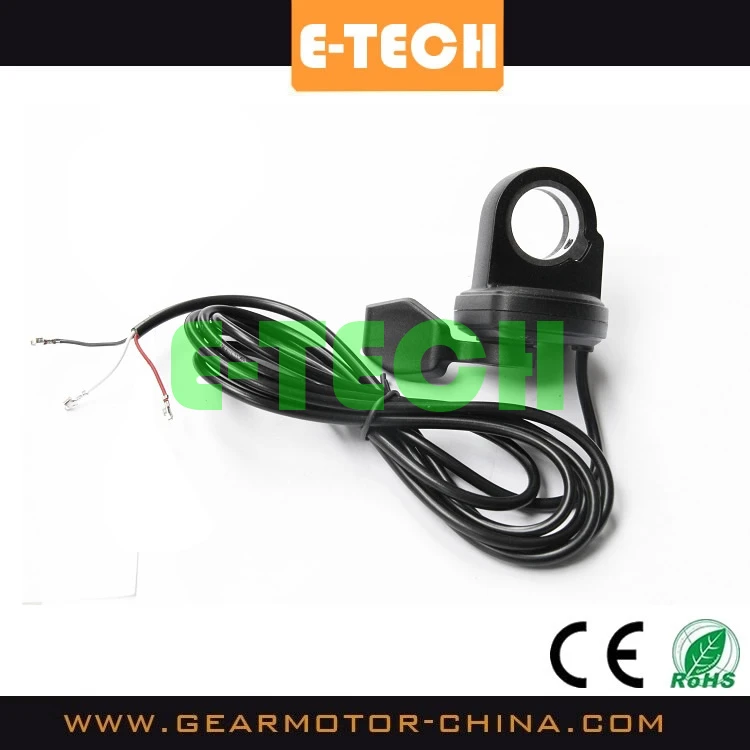

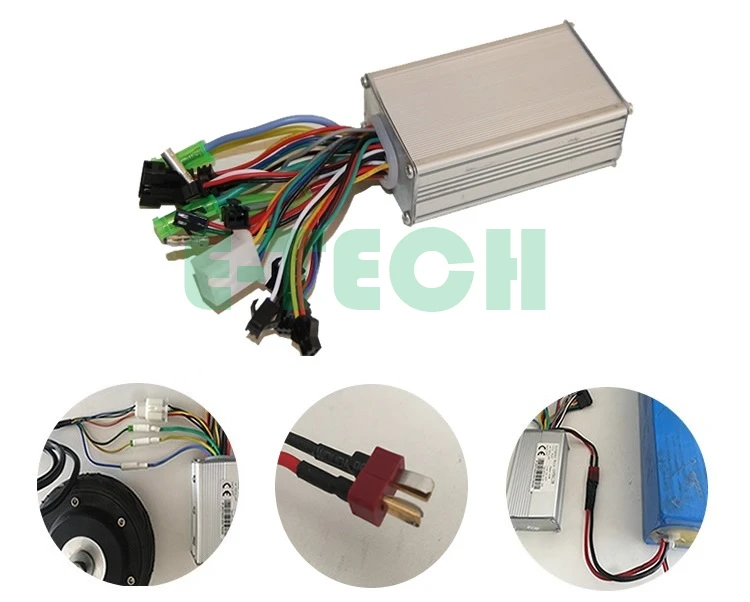

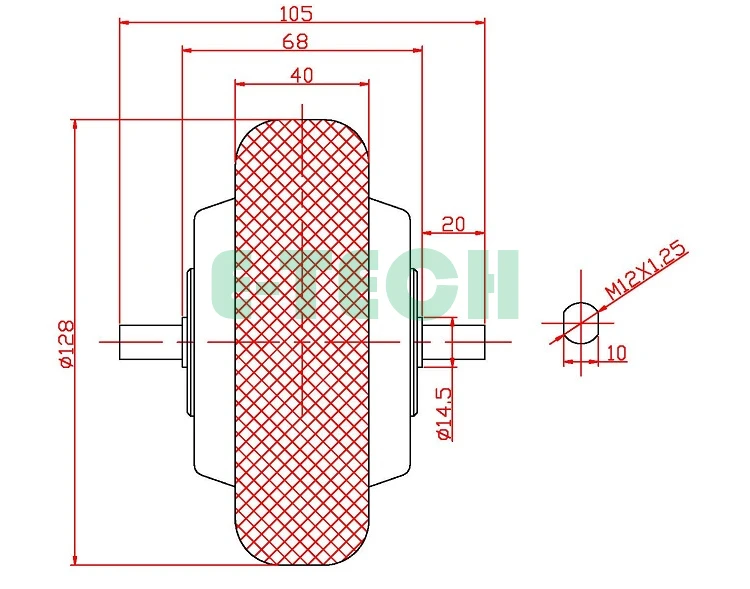

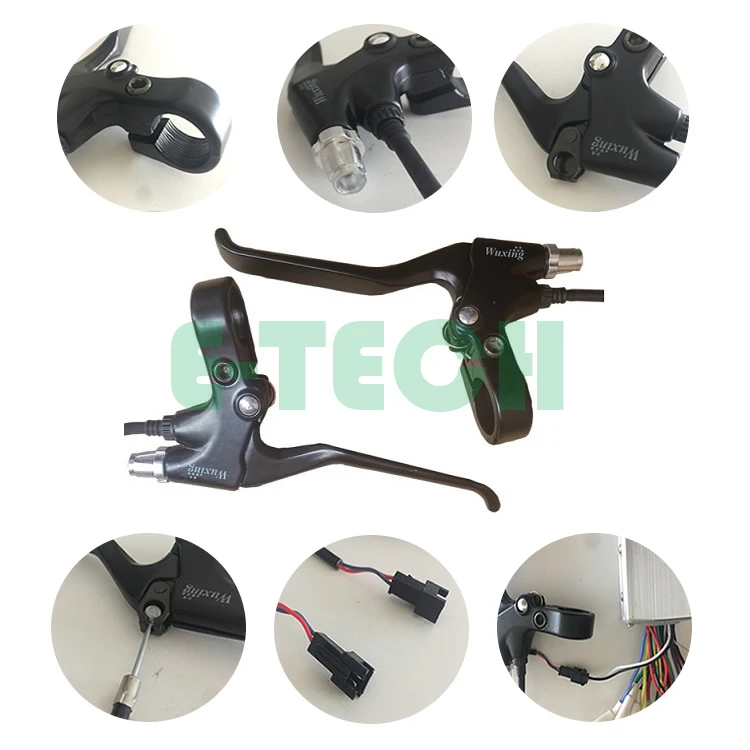

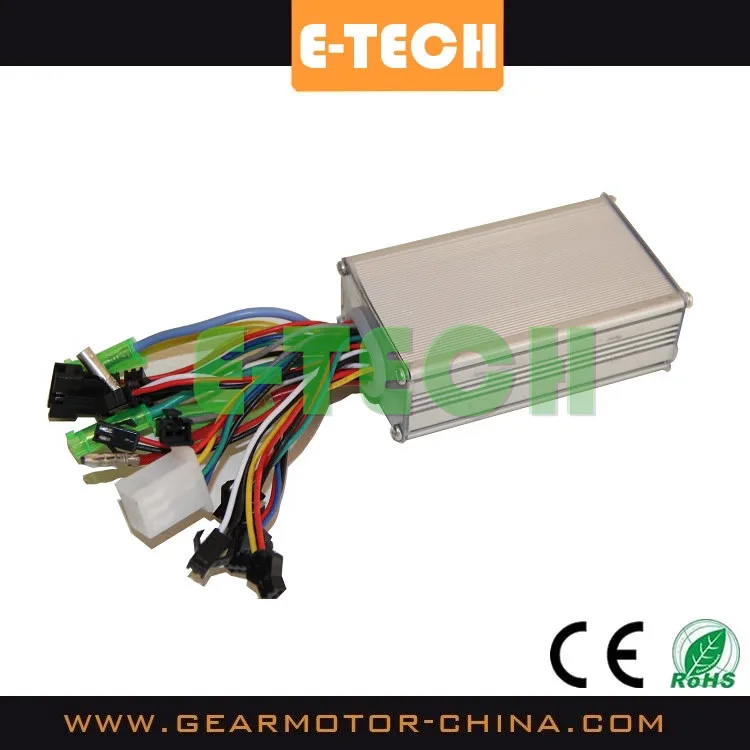

ETECH electric scooter conversion kits, 5 inch hub motors kits with controller and display Attention Please! 1. All Brazil customers please inform us your VAT number otherwise we can not ship. 2. Import may cause custom tax according to different countries policy and ourprice does not include this custom tax! ​ Main Specifications Parameters Model Number HJ-004 Type brushless and gearless Brake EBS Tire Solid tire N.W. 1.9kg Diameter with tire 130mm Rated voltage DC 24V/36V/48V Rated power Max.200W No-load speed max. 1600rpm No-load current 0.3-1.3A Efficiency more than 84% Technical Drawing ShippingPacking List 5inch hub motor x1pcs matching controller x1pcs thumb throttle x1pcs ebs brake handle x1pcs LCD display x1pcs Optional 5inch front wheel with shaft x1pcs Installation and Wiringof RelatedComponents (I) Controller Controller function: Speed control /LCD connector / Speed limited / PAS... Controller dimension: 9cmx5.2cmx3cm Bellowing photos show the connectiong between controlle with motor and battery ​(II) Throttle (thumb throttle /twist throttle) Thumb Throttle Thumb throttle functions: Speed adjust / Battery indicator / Power lock Thumb throttle installation: Wire length 150cm /Mounting hole diameter 22mm / Fixed andfasten by screw Bellowing pictures show the installation and wiring informaiton Twist Throttle Twist throttle function: Speed adjust/ Battery indicator / Power lock Twist throttle installation: Cable length 150cm / Mounting hole diameter 22mm/ Fixed and fasten by screw Bellowing picture shows installation and wiring information ​ (III) Brake Handle (SoftEBS Brake/ Mechanical Power-off Brake) Soft EBS Brake Handle Soft EBS brake handle function: Supply soft brake power and brake power and time can be adjust by the handle Installation: Wire length 150cm/ Mounting hole diameter 22mm / Fixed and fasten by screw Bellowing pictures show installation and wiring informations ​ Mechanical Power-off Brake Hanlde Function: Cut off power when brake / Supply mechanical brake power Installation: Wire length 150cm / Mounted and fasten by screw Bellowing picture shows installation, brake line connecting and wiring informations ​ (IV) LCD Display LCD diaplay functions: Speed information / Power / RPM / Battery indicate / 5-level speed can be chosen Installation: Wire length 150cm / Mounted by brakcet and fasten by screw About E-TECH "E-TECH" is the trademark owned by Sichuan Hongjun Science and Technology Co., Ltd.(Hongjun) who is dedicated in the design and manufacture of electric transport tools such like e-bike, e-scooters, e-car... Hongjun manufacture electric hub motors in both geared and gearless type to meet demends from different applications! Hongjun hub motors line from min.3inch to max.18inch and max. power can reach to 1000W! In order to save time and cost for customers, Hongjun also supply one-stop solutions for customers and all related components can get here at goods price such like controller, throttle, brake, battery... Please feel free to contact with us for more informations! E-TECH Work Shop E-TECH Hub Motors Applications E-TECH hub motors are widely used in skateboard, self-balance scooters, mini electric scooters, electric wheelbarrow, electric transport tools, medical equipment, robot... How to Contact US? Email: sales@gearmotor-china.com Skype: terry.hyst WhatsApp: +8615008220675 Wechat: 15008220675
